Imagine being able to transform plain vinyl sheets into captivating designs—decals, signs, or custom apparel hits—all through a machine that, once set up correctly, unlocks endless possibilities for creativity.
If you’re new to vinyl cutting or want to simplify your setup without wading into expensive software, this is the place to be.
The keyword target here is “setting up your vinyl cutter with free software.” Setting this up may appear intimidating at first. Still, following a straightforward step-by-step process, you can have your Cutter up and running, creating professional-level work—without having to pay for commercial software.
In this step-by-step tutorial, I’ll guide you through every stage of the setup, from assembling the hardware to configuring the software, with helpful observations, practical tips, and real-world insights along the way. For hobbyists and small business owners, having this process nailed down translates to a smoother workflow and better results.

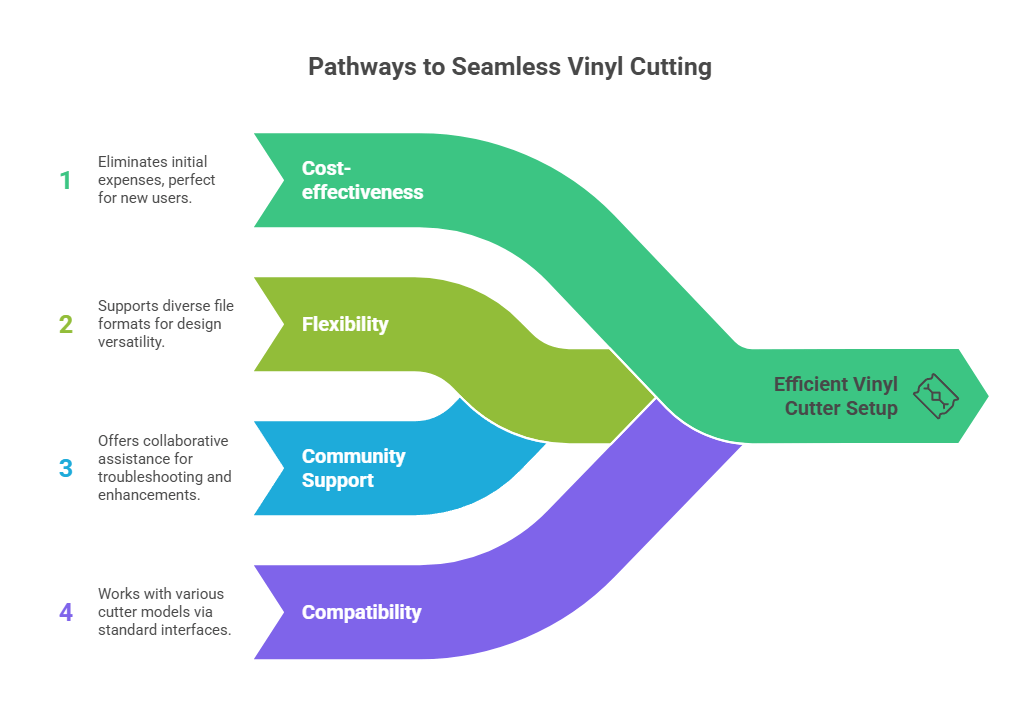

Why Use Free Software for Your Vinyl Cutter Setup?
Before diving into the steps, it’s worth understanding why free software is not only sufficient but also proper when setting up your vinyl cutter.
- Cost-effectiveness: No upfront cost, ideal for beginners.
- Flexibility: Many free software programs support a wide range of file types for design imports.
- Community Support: Open-source projects and online communities provide troubleshooting and improvement support for your installation.
- Compatibility: Most free software handles a variety of cutter models through standard interfaces.
A few well-known options include Inkscape, VCarve (with a free version), JaysenCut, and LibreCut. Each of them has various features to meet different needs, but Inkscape is the most feature-rich for vector design and is well-supported.
Preparing Your Hardware: Assembling the Vinyl Cutter
Software later; first, ensure your vinyl cutter is assembled correctly.
1. Unboxing & Hardware Setup
- Carefully unpack your Cutter, following the manufacturer’s instructions.
- Connect the power supply and turn the machine on.
- Install the cutting blade holder and ensure the blade is seated correctly.
- Load the vinyl roll onto the spindle, with tension set to prevent slack or tautness.
2. Connection to Your Computer
- Connect via a USB, serial, or Ethernet cable, depending on your cutter model.
- Plug the cable into your computer and turn it on.
- Install drivers if your cutters require some. Search for compatible drivers for your OS on your manufacturer’s website.
3. Testing Basic Functionality
- Print a basic test command if one exists, or manually jog the Cutter to ensure it is responding.
- Tension and blade depth might need adjustment for clean cuts.
Installing and Configuring Free Software
1. Downloading Your Preferred Software
- Visit trusted sources, such as Inkscape or JaysenCut, and others.
- Download the latest stable version that supports your OS (Windows, Mac, Linux).
2. Installing the Software
- Run the installer and follow the prompts.
- During installation, install any required dependencies or plugins that enable cutter control.
3. Configuring Your Project
- Launch your software and familiarize yourself with the interface.
- Design or import your design (vector files are best, such as SVG or DXF).
- If you’re using raster images (PNG, JPG), you’ll need to trace them to vectors—Inkscape has excellent tracing abilities.
Connecting Your Software to the Vinyl Cutter

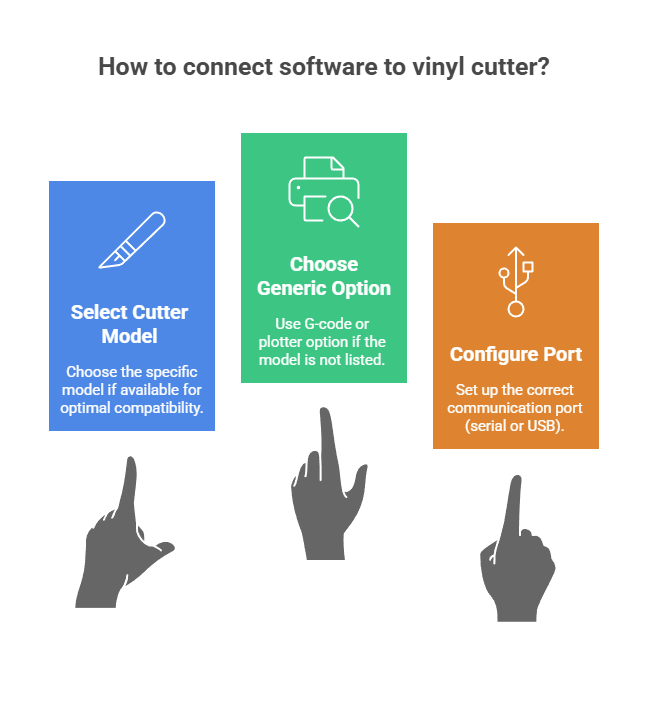

1. Configuring Printer/Plotter Settings
- Navigate to the software’s preferences or device settings.
- Select your cutter model from the available devices if it exists. Otherwise, choose a generic G-code or plotter option.
- Select the correct port (serial or USB) and configure the communication protocol accordingly.
2. Testing the Connection
- Perform a basic test by sending a test cut or jog command to verify communication.
- Configure speed and force settings for your specific vinyl and blade.

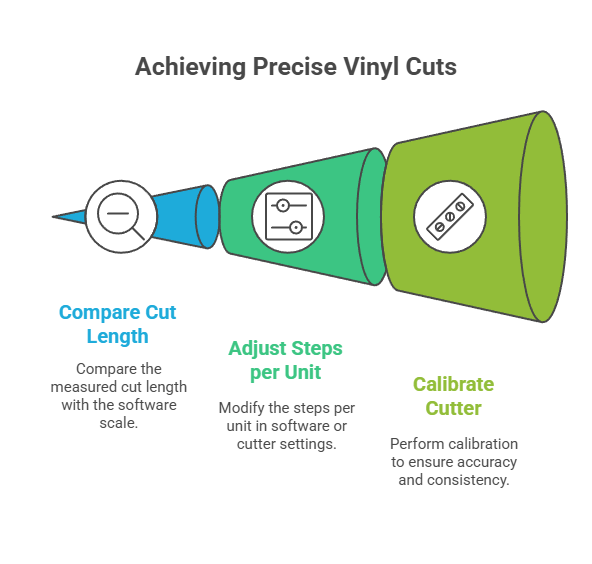

3. Calibrating the Cutter
- Measure and compare the actual cut length to the scale on the software.
- Adjust the steps per unit in your software or cutter settings for precise control.
- Proper calibration is essential to prevent wasting vinyl and achieve precise cuts.
Designing or Importing Your Designs
1. Designing from Scratch
- Utilize the software’s vector drawing capabilities.
- Keep your design simple to start with—practice using text and simple shapes.
2. Importing Existing Files
- Use SVG, DXF, or compatible vector file formats.
- Resize your design if needed, maintaining aspect ratio.
3. Preparing Cut Lines
- Prepare your design into cut-ready paths.
Remove fills; set stroke to indicate cut lines. Seal and smooth all paths for clean cuts.
Setting Up the Material and Cutting Parameters
1. Selecting the Correct Vinyl and Blade Settings
- Select the correct type of vinyl (glossy, matte, reflective) for your project.
- Adjust the blade depth in relation to the material thickness; a reasonable starting point is 1-2 mm, but always refer to the manufacturer’s instructions for accurate guidance.
- Adjust the cut force (pressure) correctly—too high will cut or burn the backing, too low will result in partial cuts.
2. Feeding the Vinyl
- Feed vinyl carefully into the pinch rollers of the Cutter.
- Align the vinyl with the guide marks or edges of the machine for accurate cutting paths.
- Use a registration mark feature if your cut software supports this feature for multi-layered projects.
3. Verifying the Cut Settings
- Perform test cuts on scrap vinyl.
- Adjust the pressure, speed, and blade depth until the cuts are clean through the vinyl, but do not cut through the backing.
Cutting for the First Time: Step-by-Step
1. Pre-Cut Checks
- Ensure that the design is aligned correctly.
- Review your material alignment and cut settings to ensure optimal performance.
- Save the design in the software program.
2. Sending the File to the Cutter
- Click on ‘Send to Cutter’ or equivalent option.
- Enable any post-processor features, such as outlining or multiple passes.
- Await the command response from the Cutter.
3. Monitoring the Cutting Process
- Keep an eye on any misalignment or errors.
- If the cut is not clean, stop and adjust the blade depth or pressure.
- Keep the vinyl from moving while cutting.
4. Removing and Weeding the Vinyl
- After cutting, remove the excess vinyl slowly (weeding).
- For tight corners or detailed sections, use a weeding hook.
- Apply transfer tape when transferring decals.
Troubleshooting Common Issues
| Issue | Possible Cause | Solution |
| The blade is not cutting properly | Dull blade or incorrect tension | Replace the blade and adjust the tension |
| Vinyl slipping | Incorrect alignment | Realign vinyl or adjust pinch rollers |
| Software not communicating | Incorrect port or driver issue | Reinstall drivers and verify port selection |
| Incomplete cuts | Insufficient pressure or speed too quick | Slow down, increase pressure gradually |
Regular calibration and practice are key to minimizing these issues. Maintain your Cutter consistently.

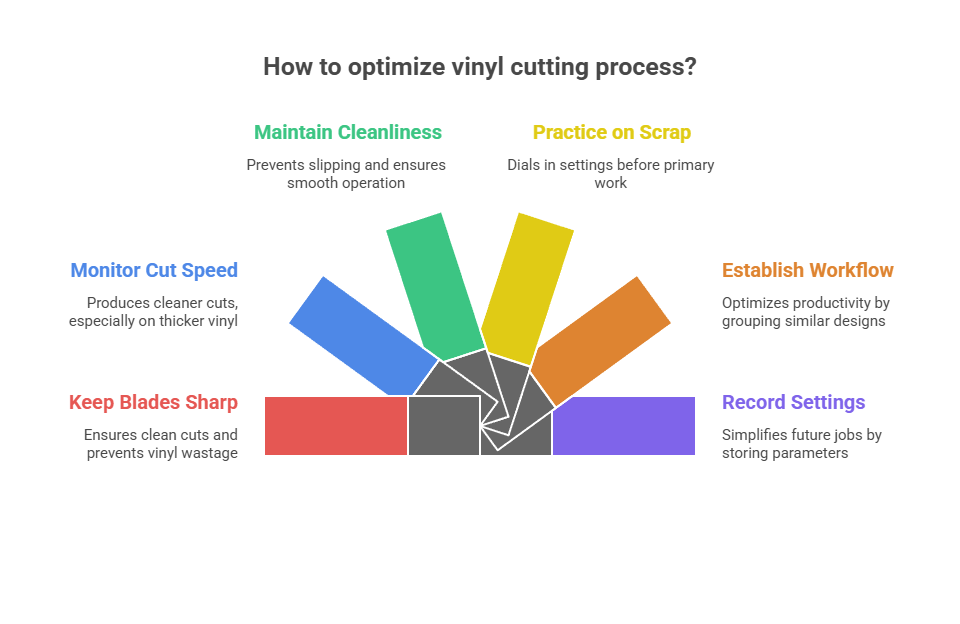

Tips for Optimal Results and Efficiency
- Always keep your blades sharp. Dull knives cause ragged cuts and wasted vinyl.
- Monitor your cut speed. Slower speeds often produce cleaner cuts, especially on thicker vinyl.
- Maintain cleanliness. Dust or adhesive residue on rollers can cause slipping.
- Practice on scrap vinyl. Get settings dialed in before cutting your primary work.
- Establish a workflow. Group similar designs and prepare multiple cuts for optimal productivity.
- Record your settings. Store parameters for each type of vinyl to make future jobs easier.
Final Thoughts: Master Your Vinyl Cutter Setup
Getting your vinyl cutter operational with free software is a rewarding experience. It may require patience, trial, and error, but it builds a stronger relationship with your machine and your art.
The key to remember is attentive setup, calibration, and understanding of your materials.
Start small—dial in your settings on test cuts—and gradually move on to more complex projects.
The more you use it, the more you’ll develop a sense of the correct parameters for different materials and designs, making your workflow faster and your output more professional.
Enjoy the process—each Cutter, software, and project contributes to your skill set. You’re well on your way to making amazing vinyl art that pops with these step-by-step instructions.
FAQs
H-3: Can I install my vinyl cutter with free software on a Mac?
Yes. Several free software packages, such as Inkscape, are available for macOS. Ensure that you have all necessary drivers installed for your Cutter and that your communication ports are correctly set.
H-3: How do I troubleshoot software-to-cutter communications errors?
Check your cable connections, verify your driver installation, and confirm that your software is set to the correct port. Restart both your computer and Cutter if necessary, and consult your software’s user manual for specific troubleshooting steps.
H-3: Is it necessary to calibrate the Cutter regularly?
Yes. Regular calibration will maintain the accuracy of your cut lines, saving you time and reducing vinyl wastage. Calibrate whenever you change materials or notice deviations from previous cuts.
